Insulation anchor VT

The insulation anchor VT consist of a polypropylene anchor with a huge loading plate and an expanding pin.

We offer two types:
1.  with plastic-pin (unicolor)
2.  with galvanized metal-pin (+ plastic-caps in differend Colors)

The plates have a diameter of 60 mm and prevent the formation of thermal bridges and condensation water. In additon, the plates are perforated to give a good grip for plaster. For this reason they are very well-suited for any applications in the thermal insulation composite system (TICS).

Insulation anchors VT are used for fastening insulation on cement and on solid and perforated brick (utilisation class A-B-C-D). Also on natural stone with compact structure, leigth-weight concrete and gas concrete.

For secure anchoring in the surface, we recommend pre-drilling (d = 8 mm) and blowing dust and dirt from the hole before the fasteners are placed and anchored by the expanding pin with a hammer.
To minimize the effort, the anchors are pre-assambled.

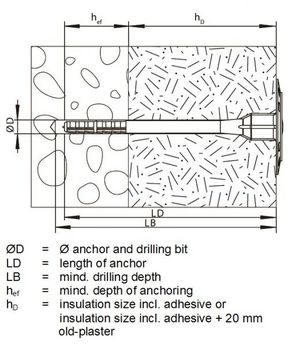

Fitting instruction

Dimensions and variants

PLASTIC EXPANDING PIN - without approval
Dimension Packing unit Variant / Item No.
Insulation size hD
in mm
ØD x LD
in mm
Min. drilling-
depth LB in mm
Min. depth of
anchoring hef in mm
pcs/box Plastic pin
40 8,0 x 80 90 40 200 91 23 04 099
60 8,0 x 100 110 40 200 91 23 06 099
80 8,0 x 120 130 40 200 91 23 08 099
100 8,0 x 140 150 40 200 91 23 10 099
120 8,0 x 160 170 40 200 91 23 12 099
140 8,0 x 180 190 40 200 91 23 14 099
METAL EXPANDING PIN - with european technical approval (ETA-04/0030)
Dimension Packing unit Variant / Item No.
Insulation size hD
in mm
ØD x LD
in mm
Min. drilling
depth LB in mm
Min. depth of
anchoring hef in mm
Color
plastic-cap
pcs/box Metal-pin
40 8,0 x 80 90 40 red 200 91 24 04 099
60 8,0 x 100 110 40 beige 200 91 24 06 099
80 8,0 x 120 130 40 yellow 200 91 24 08 099
100 8,0 x 140 150 40 green 200 91 24 10 099
120 8,0 x 160 170 40 white 200 91 24 12 099
140 8,0 x 180 190 40 orange 200 91 24 14 099
160 8,0 x 200 210 40 brown 200 91 24 16 099
180 8,0 x 220 230 40 blue 100 91 24 18 099
200 8,0 x 240 250 40 red 100 91 24 20 099
220 8,0 x 260 270 40 green 100 91 24 22 099
240 8,0 x 280 290 40 white 100 91 24 24 099
260 8,0 x 300 310 40 grey 100 91 24 26 099
